XT60 Set Connectors with Pigtails


Current stock: 0

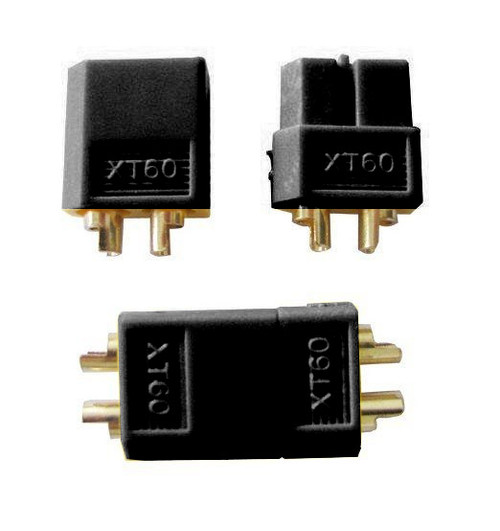

XT60 connectors

Male and female complete set

Includes high-temp soft silicone insulation over very flexible 14ga multi-strand wire




To make your life easier here are XT60 connectors with high quality soft silicon insulated wire already soldered to the connector.

With these you can use crimps instead of solder to connect your XT60 wire. Whether you like to solder or use a dry crimp, pigtails are much easier and faster than attaching wire ends to bare connector shanks. This is what we use whenever we have a choice.




1. How much current are these rated for?
2. Do these have spark suppression?
3. What size wire should I use with these?
4. Is the polarity marked on the connectors?
5. Which one is the Male and which one is the Female?
6. How long are the leads ?
1. They are rated for 60 amp duty ,designed to handle 60 Amps continuously without exceeding 80°C.
2. No, only the XT90-S has spark suppression.
3. XT-60 solder lugs are ideally sized to accept 12-14 AWG wire.
4. Yes, each edge of the connector has the recommended polarity symbol indicated.
5. The connector half with the metal prongs is the male. The half with the metal sockets is the female. The outer plastic housing does not affect gender assignment.
6. The leads are approximately 4" long and are pre-tinned.

5 Reviews

Lawrence Anderson Sep 27th 2018

XT60 Connectors with pigtails

These connectors with the included pigtails are just what I needed to connect my new 35A
controller to my 60V battery. MUCH easier to use a pre wired XT60 than trying to solder one myself.
That's the whole reason for the purchase. Very well made, and quality parts too.
Quick shipping as well.

Victor Aug 31st 2017


Quick service I ordered a few x60 and x90 connectors They are not available anywhere around here so I ordered extra because the shipping fee to Halifax is more than the product cost. They work as described Happy with Luna service to Canada thanks
