Best and most offset
This ring offers the best and most if too much offset
The biggest complaint we have heard about the awesome new BBSHD 1000W Bafang mid drive is it has an ugly, heavy chain ring.
Luna Cycles is not only the first dealer in the world to have the BBSHD 1000W in stock (go here to buy), but now we are the first to offer an aftermarket chainring for the BBSHD. Also we wanted to create a piece of art and to really make a statement that we are hear to raise the game. We are so proud that this piece of art is created right here in California and we will never outsource it because California can do it better than China. They can copy us but then they suck.

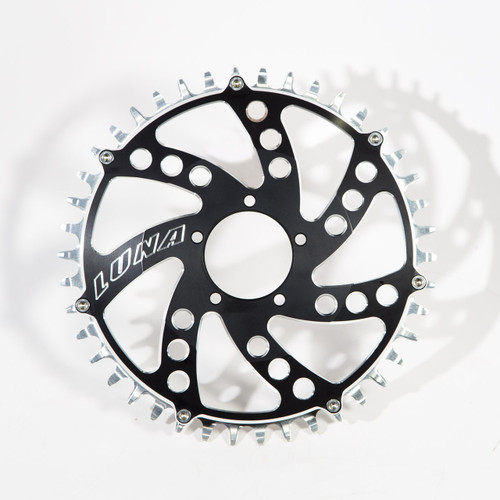

This is a two piece unit and has everything you need to convert to a beautiful 42 tooth chain ring.
This comes stock with a sprocket, but it is a two piece and the sprocket can be changed out later for one of our other sizes. See the options for available sprocket sizes, any sold out size will be autohidden until restock.

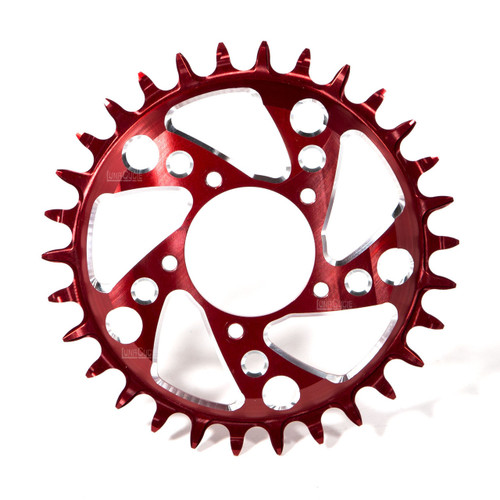

We will be offering a full range from 40T to 56T chainrings which you can change out. As always expect top quality and our "can't be beat" pricing.
Note that the only chainring shown is straight polished alloy. Chainrings will also be available in blue, black, red and these will be machined so that they will also have polished metal showing (see blue ring in pictures).
Changing from the old ring to our bling ring is a quick 5-10 minute job. Pull the crank off, then the old chainwheel and slap the new Eclipse ring and the crank arm back on.
For an independent review from Karl at Electricbike-blog.com (check out this review).
If chainring touches your chainstay when mounted you can use a chainring spacer to back it off a bit (slightly longer M5 chainring bolts may be needed, you can get these at your local hardware store)
As seen in the comparison this chainring provides more offset than anything else on the market, to maximize the potential for the absolute best chainline and all the associated advantages that provides. This can sometimes be too much offset if you have a wide chainstay and it touches the chainstay. You can use our chainring spacers to move it away from the frame as much as needed (you can double or triple them up if you need to)
Single speed users: The recommended way to run this chainwheel on a single speed is with a chain tensioner. If you don't have a chain tensioner and the chain falls off you can't just put it on the cog then put it on the chainwheel and turn the crank. Because the chain has to wrap around the front of the chainwheel and it is so massively offset you will bend the chainwheel and/or bend or break teeth as the chain gets way too tight. Instead you must take the chain off the cog and put the chain on the eclipse chainring then put the top of the chain on the cog and gently roll the bike backwards, stopping if there is too much pressure. It should put the chain back on without bending the Luna eclipse chainring. If you have a single speed without a tensioner and try to reinstall the chain on the cog first your broken chainring (it will break) will not be covered under warranty.
This ring offers the best and most if too much offset
I stumbled on to Luna by chance while researching fast e-bikes. I have made a few purchases; battery, chainring, gear sensor etc. and I can't say enough great things about them. Price, customer service and support have made this learn curve enjoyable. When I complete my build it will be posted on the forum. Thanks again, Hunter Mchenry, Illinois
Excellent chain ring, I've never had a chain derailment. It's unbelievably light, I would have thought it was made from titanium if the product page didn't say it was aluminum. Despite being made of aluminum, it's still incredibly strong. As a bonus, the silver color matches my bike frame perfectly. It's so good-looking, the guys at my local bike shop took a picture of it because they were so awed by its splendor.
Awesome chain ring. No more dropped chain.
- Looks great
- teeths are big to hold the chain without dropping
- lite weight
- need to use spacer, so offset is about the same as bafang
- spacer opening can be a bit bigger
- I paid 130€ and still need to look for extended stainless steel hexadecimal bolts
- import taxes
- lekkie is lighter, cheaper and does not require spacer
compre el plato 42 d ,increible la diferencia de peso con el original ,ganancia en peso ,estetica y velocidades ya que no cruza tanto la cadena, gracias luna
I buy the eclips chainring 42 tooth and it fit's perfect for the drivetrain and can put a bigger one then need the spacers so its going more offset again and I don 't want that. It's nice and clean nog.
Satisfy. The throttle also doin it's job.
It's a same that we do not have a retailer here in the Netherlands europe, butt anyways I'm glad and happy that I recieved the gear and it fits perfect and looks awesome. Thank you luna cycles
The Best on the market. Period...
Extremely fast shipment to Denmark...
Thanx again Luna
Love this chainring. I brought the red 42T and it makes my bike pop. Alignment is perfect with the spacer.
Purchased this because of the good reviews and the stock chain ring just didn't seem to ride as smooth when pedalling. This was totally worth the money. Bike rides so much better now. I don't have a throttle installed yet but I assume it will work great with that as well.
