Z-1 Enduro EBIKE

$4,499.00
Sizes Available *

Current stock: 0
In Stock and Now Shipping
Size Guide Details
Carbon Fiber Galaxy Paint FS FrameUltra Mid Drive with Steel GearsRockshox Front and Rear Suspension48v 17.5ah Integrated Battery

This is essentially the same bike as our newly released X2, with the exception of the motor which is the Bafang Ultra ) which is larger and considered a bit more stable than the m600 which we use on the X2.  The Z1 features a high grade of components including Rockshox suspension.   It also has the advantage of not having the crappy Bafang CANBus firmware which requires special box and special permission to program.  This drive can be programmed as simply as the BBSHD or BBS02 using any Bafang programming cable.  The Ultra Motor also has a significantly larger motor core which makes it more reliable at higher power levels.

Industry Leading Electric Drive system
  • Bafang Ultra Drive (m620) with Luna Steel helical gears
  • Torque sensor (Tuned by Luna) with Throttle
  • 160 NM of torque
  • Temperature sensors & Steel gears
  • DPC-18 Color Display with USB port
  • 48v 17.5 ah with LG cells (850 watt hours)
  • 30-40 mile range with moderate pedaling
  • Fast removable battery (see images)
  • Lightweight bike considering this level of performance and range (62 pounds for medium)
  • Galaxy Black Paint
Top End Bike Components

Z-1 Components

You will not find specs like this in ANY bike under 3k (including a standard pedal bike).  With an Eagle 12 group set, a Carbon Fiber Frame, ROCKSHOX top end suspension, GUIDE hydraulic brakes, and MAXXIS tires, this bike will outperform similar OEM rivals with twice the price tag.

  • Rockshox Debonair Yari 160mm
  • Rockshox Deluxe Select 230mmx60mm in Rear
  • Sram SX Eagle 12 speed cassette (standard HG driver, not the XD from SRAM)
  • Sram Guide 4 piston hydraulic brakes 200mm front 180mm back (6 bolts rotors)
  • Maxxis Rekton 27.5”x2.8" tires
  • 44 56 non integrated headset
  • Double wall alloy 40mm 27.5" rims
  • Dropper seat-post with internal routing
  • All cables throughout the bike are internally run
  • Thru-axle hubs in both front and rear 15x110 Boost front, 12x148 Boost rear (Length 180mm, 1.75 pitch)
Rockshox Debonair Yarirockshox-z1.pngSram Eagle SX 12 SpeedSRAM GUIDE 4 Piston Hydraulic Brakesmaxxis-rekon-component.pngKS Dropper Seat Post
BAFANG ULTRA Mid Drive

Bafang Magnesium Ultra

We proudly worked hand-in-hand with Bafang to develop and manufacture this new massive "Mag Ultra" motor to make ebikes like the Z-1 possible. This is a 1600 watt version of the Bafang M620  In true Luna fashion, we have added our own “secret sauce” to what was already guaranteed to be a great final product.  We are ecstatic about the reliable and smooth power we have programmed in a shape that is integrated into the frame much like the Bosch or Brose motor, giving you serious torque and speed and maximum ground clearance.  This motor has considerably more motor mass than the bolt on the BBSHD conversion kit but uses very similar engineering to the BBSHD, which has proven itself to be a reliable high-performance mid drive motor.  The Ultra promises to be even better due to the increased motor mass and improved heat dissipating qualities, but at the same time still preserving the same silent and reliable performance.

We have had samples of this drive for over a year and have performed extensive testing, helping Bafang to create the most feature-rich, powerful, and potent mid drive motor on the market.

Bafang Replacement Parts

When you buy from Luna, know we are one of Bafang’s largest dealers and one of the few who keep a full line up of replacement parts on all the drives we sell.  Bafang systems are generally very reliable and if a part breaks they are very easy to service.  We provide many instructions for how to swap parts in our knowledge base: https://electricbike.com/forum/

If you do fry any parts, we will have a full stock of replacement motor parts that are easy to swap out in case something does break.  Parts are covered for a 6 month warranty but again, use common sense about being in the right gear etc. when riding, especially in Ludicrous mode.  At the least, you will have more confidence knowing parts are always easily swappable in the unlikely event something does break.

Battery Pack

Luna Cycle has been known for years as an ebike industry leader in ebikes. Without a good powerful light weight battery the rest of the bike will be landfill.  This bike utilizes a battery pack which has been integrated into the downtube, yet is easily removable as needed allowing for quick changes.  The battery will include 2 keys with a locking release mechanism, securing the battery firmly in place and adding to the strength of the downtube.  The battery also has its own power switch and charging port, allowing you to remove the pack and safely charge your battery in a more convenient location than the bike may be stored in.

A Legit Enduro EMTB

The Z-1 is a legitimate contender for ANY other electric Enduro eBike on the market, and will fit in on almost ANY trail due to the stealthy design and quietness.  At first glance, it will appear to be a tricked out Enduro eBike to even the most seasoned riders, allowing you to hold your head high as you share the trail with standard bikes and eBike alike.  Of course, the added benefit of being able to smoke any other $8000+ OEM 250 watt spec’d bike up a hill is priceless.

SIZING

Size Guide Details

We are proud to offer the Luna Z1 Enduro in 3 sizes.  But really so many sizes is not needed.  With electric bikes we always recommend when in doubt go with a smaller size, frame size is not as critical with an electric bike as it is in a pedal bike since optimal pedal efficiency is not as important.  Here is a chart to help you find your right size. Also remember that in modern mountain bikes like this one with swept low downtube frames with remote controlled drop out seat posts where you can instantly change your seat height.... they are easy to step over and size really is not as critical...so another good reason to opt for the smaller size. Sizing is not a  critical decision on the X bike.  If you are in doubt go to a local bike shop and sit on comparable mountain boost bikes to get an idea of sizing.

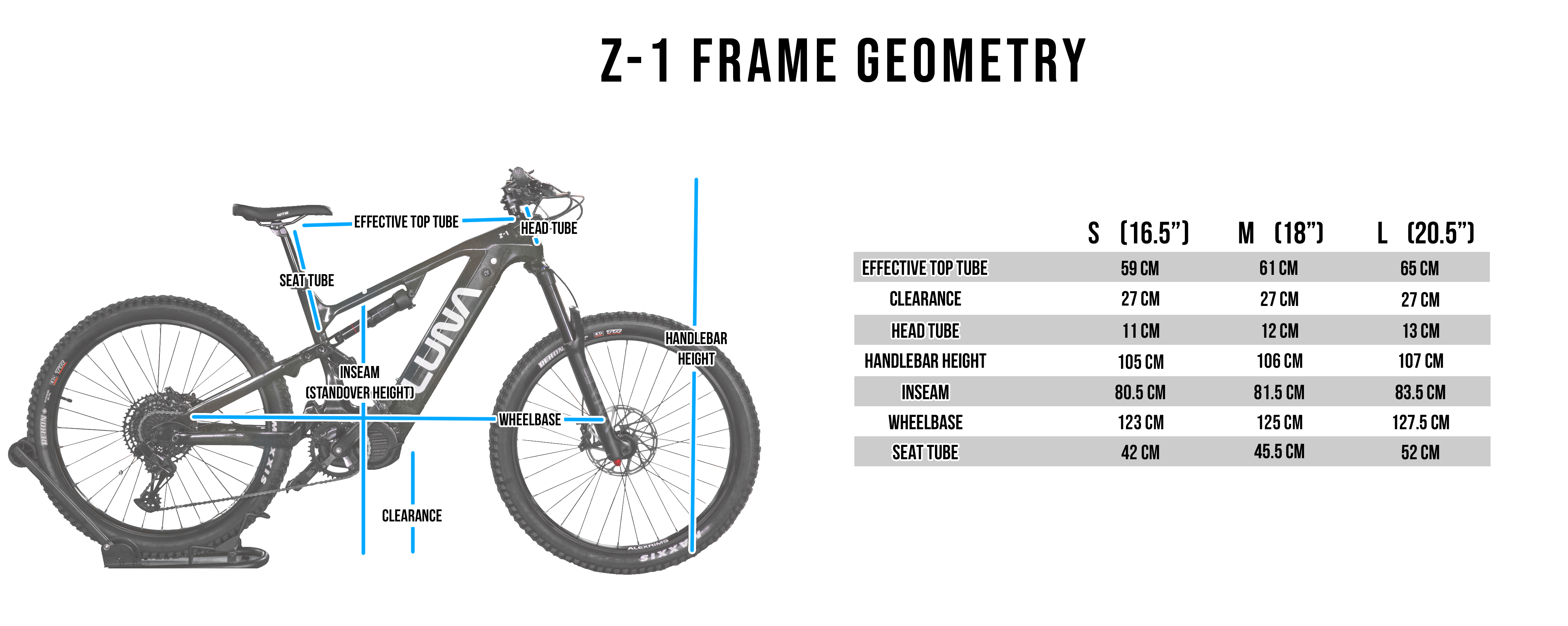

Z-1 Geometry
Click Here for Close Up
Customer Support

Every member of our support team is an electric bike fanatic owning many ebikes and believe in ebikes. We are busy and prefer email and chat over phones but we get back to everyone in a timely manner.  We have a knowledge base and extensive troubleshooting guides on most of our products.  For an e-commerce ebike company we believe we are second to none and are proud of our team.

We recommend if you require more face to face customer service and need regular maintenance done to your bike we fully endorse local bike and ebike stores as a better way to buy.

By nature all bicycles are a bit delicate and will require wrenching.

For documentation, assembly, maintenance and troubleshooting , please check out our Knowledge Base

Warranty

Luna has always offered way and beyond our advertised warranty.  That is nothing new, but recently people have perpetuated the myth we do not support our products.  We have always supported our products over and beyond any written warranty.

We are offering a longer written warranty in answer to the forum haters.

This warranty covers manufacturer defects and does not cover user neglect. Weight limit 250 lbs.

  • 2 years on the carbon frame
  • 1 year on the battery
  • 6 months on the motor and other components
